General Description:

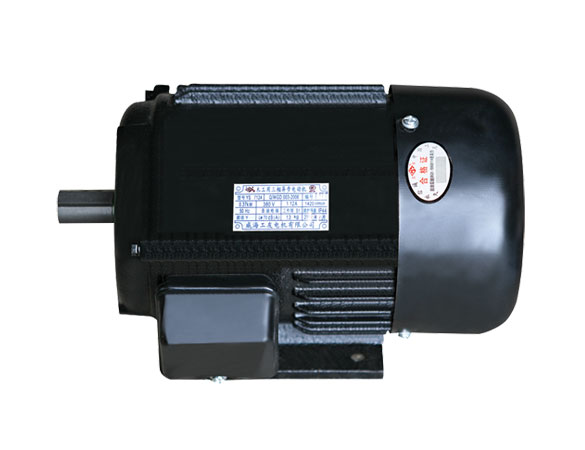

YS series motor is afully enclosed micro three-phase asynchronous motor with the latest design. with features like simple structure, reliable performance,easy maintenance and achievement of technical-economic targets, the products have been widely used in the small-sized machine tool,medieal equipment and electonic instrument and househole electric appliances and so on. YS motor series have Protection Class of IP44, Insulation Class of E or B, Cooling Method of IC411.

Working condition:
Ambient operation temperature： It may vary with the changing weather but never exceeding 40℃.
Altitude： Not more than 1000m
Rated Frequency：50Hz
Rated Voltage：380/220V
Operation Mode： Consecutive(S1)
Wiring：Y/△

Technical data

Type	power (KW)	Voltage (V)	current (V)	speed (r/min)	Efficient (%)	Power factor (cos￠)	Locked-rotor torque/Rated torque	Locked current/Rated current	Maximal torque/Rated torque
Synchronous speed 3000r/min 2pole
YS5612	0.09	380/220	0.33/0.57	2800	62	0.68	2.3	6.0	2.3
YS5622	0.12	380/220	0.39/0.67	2800	67	0.71	2.3	6.0
YS6312	0.18	380/220	0.59/1.02	2800	69	0.75	2.3	6.0
YS6322	0.25	380/220	0.7/1.21	2800	72	0.78	2.3	6.0
YS7112	0.37	380/220	0.96/1.66	2800	73.5	0.80	2.3	6.0
YS7122	0.55	380/220	1.35/2.34	2800	75.5	0.82	2.3	6.0
YS8012	0.75	380/220	1.75/3.04	2800	76.5	0.85	2.2	6.0
YS8022	1.1	380/220	2.55/4.42	2800	77	0.85	2.2	7.0
YS90S-2	1.5	380/220	3.44/5.95	2800	78	0.85	2.2	7.0
YS90L-2	2.2	380/220	4.83/8.36	2800	80.5	0.86	2.0	7.0
Synchronous speed 1500r/min 4pole
YS5614	0.06	380/220	0.29/0.49	1400	56	0.58	2.4	6.0	2.4
YS5624	0.09	380/220	0.39/0.67	1400	58	0.61	2.4	6.0
YS6314	0.12	380/220	0.44/0.76	1400	60	0.63	2.4	6.0
YS6324	0.18	380/220	0.6/1.04	1400	64	0.66	2.4	6.0
YS7114	0.25	380/220	0.83/1.44	1400	67	0.68	2.4	6.0
YS7124	0.37	380/220	1.12/1.95	1400	69.5	0.72	2.4	6.0
YS8014	0.55	380/220	1.56/2.7	1400	73.5	0.73	2.4	6.0
YS8024	0.75	380/220	2.01/3.49	1400	75.5	0.75	2.3	6.0
YS90S-4	1.1	380/220	2.75/4.76	1400	78	0.78	2.3	6.5
YS90L-4	1.5	380/220	3.65/6.32	1400	79	0.79	2.3	6.5
